Hi again! Today, we’re gonna take a look at the famous Fast Approximate Anti-Aliasing algorithm.

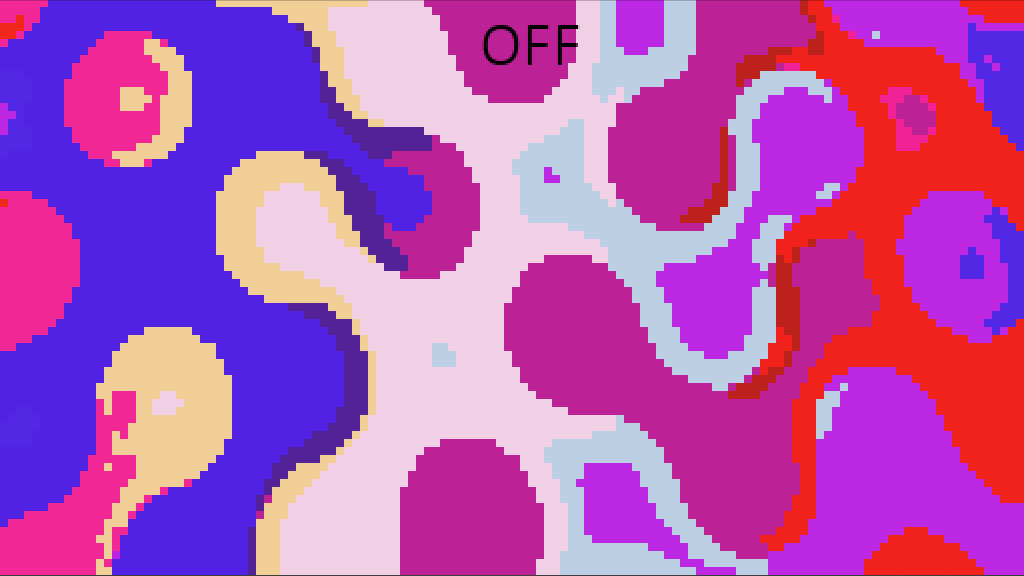

On/off comparison of FXAA

It is used to produce smoother results, cheaply imitating a high-resolution being downscaled (often too expensive for real-time applications).

The Algorithm

Here’s my implementation of the Geeks3D algorithm:

//Texel size (1/resolution)
uniform vec2 u_texel;

//Maximum texel span
#define SPAN_MAX   (8.0)
//These are more technnical and probably don't need changing:
//Minimum "dir" reciprocal
#define REDUCE_MIN (1.0/128.0)
//Luma multiplier for "dir" reciprocal
#define REDUCE_MUL (1.0/32.0)

vec4 textureFXAA(sampler2D tex, vec2 uv)
{
	//Sample center and 4 corners
    vec3 rgbCC = texture2D(tex, uv).rgb;
    vec3 rgb00 = texture2D(tex, uv+vec2(-0.5,-0.5)*u_texel).rgb;
    vec3 rgb10 = texture2D(tex, uv+vec2(+0.5,-0.5)*u_texel).rgb;
    vec3 rgb01 = texture2D(tex, uv+vec2(-0.5,+0.5)*u_texel).rgb;
    vec3 rgb11 = texture2D(tex, uv+vec2(+0.5,+0.5)*u_texel).rgb;

	//Luma coefficients
    const vec3 luma = vec3(0.299, 0.587, 0.114);
	//Get luma from the 5 samples
    float lumaCC = dot(rgbCC, luma);
    float luma00 = dot(rgb00, luma);
    float luma10 = dot(rgb10, luma);
    float luma01 = dot(rgb01, luma);
    float luma11 = dot(rgb11, luma);

	//Compute gradient from luma values
    vec2 dir = vec2((luma01 + luma11) - (luma00 + luma10), (luma00 + luma01) - (luma10 + luma11));
	//Diminish dir length based on total luma
    float dirReduce = max((luma00 + luma10 + luma01 + luma11) * REDUCE_MUL, REDUCE_MIN);
	//Divide dir by the distance to nearest edge plus dirReduce
    float rcpDir = 1.0 / (min(abs(dir.x), abs(dir.y)) + dirReduce);
	//Multiply by reciprocal and limit to pixel span
    dir = clamp(dir * rcpDir, -SPAN_MAX, SPAN_MAX) * u_texel.xy;

	//Average middle texels along dir line
    vec4 A = 0.5 * (
        texture2D(tex, uv - dir * (1.0/6.0)) +
        texture2D(tex, uv + dir * (1.0/6.0)));

	//Average with outer texels along dir line
    vec4 B = A * 0.5 + 0.25 * (
        texture2D(tex, uv - dir * (0.5)) +
        texture2D(tex, uv + dir * (0.5)));


	//Get lowest and highest luma values
    float lumaMin = min(lumaCC, min(min(luma00, luma10), min(luma01, luma11)));
    float lumaMax = max(lumaCC, max(max(luma00, luma10), max(luma01, luma11)));

	//Get average luma
	float lumaB = dot(B.rgb, luma);
	//If the average is outside the luma range, using the middle average
    return ((lumaB < lumaMin) || (lumaB > lumaMax)) ? A : B;
}

The original source code was a bit messy, but I did my best to clean it up and added some explanatory comments.

Overview

Here’s a quick technical rundown of the process:

  1. Sample 5 points starting at the center texel and halfway between the 4 neighboring texels (with interpolation enabled). That’s what the “rgb” variables are for.
    Here’s an up-close illustration of the 5 sample points:

    The 5 sample points at a pixel scale. “Luma” is shown on the right side
  2. Compute the luma for all the sample points. As you might remember, it can be computed with a simple dot product:

    float color_luma = dot(color.rgb, vec3(0.299, 0.587, 0.114));
    Which is done for the 5 texel samples. We’ll

  3. Compute gradient direction. This is what the “dir” vector is doing here:
    vec2 dir = vec2((luma01 + luma11) - (luma00 + luma10), (luma00 + luma01) - (luma10 + luma11));

    If you look closely, you’ll notice dir x-component is computed from the y-axis luma derivative, and the y-component is computed from the negative x derivative. This means it’s actually computing the direction perpendicular to the luma gradient.
    “dirReduce” is the sum of the 4 corner luma values multiplied to keep it small and limited so it’s never 0 (preventing division by 0).
    ”rcpDir” is short for the reciprocal of dir. It essentially computes which axis the dir is most aligned with and divides it by that axis, effectively raytracing against that axis. The dirReduce is added as a bias, preventing division by 0 and slightly distorting the distance (not sure if that’s intended?)
    And finally, dir is limited to the max texel span and converted to texel units.

    The output of the dir vector shows the y and -x luma derivatives

    Don’t worry if this bit was hard to follow, it’s quite obscure stuff!

  4. Blur along the “dir” axis. Now that we have dir, which points along the axis of the lowest luma contrast, we can sample 4 points along it and average them for a simple blur. For slightly smoother results, this algorithm averages the middle two samples first (“A”) and then averages another two outer samples in “B”. If B’s luma is outside the min/max range of all the other samples, we’ll output A instead. So it uses either a two-sample or four-sample blur depending on which fits in the expected range best.

So that’s the gist of the algorithm!

I’ve put together a little project to show how this can be implemented in GM. Download the source code here!

Conclusion

The key takeaway here is that FXAA is a cheap and effective algorithm for producing smoother images. It has some drawbacks (no smoothing pixels of different colors with the same luma, and has difficulties with some corners). Once you understand the uses and limitations of FXAA, you’ll probably start finding countless applications for it. It is famous for a reason!

Anyway, that’s all I got for today. Paid supporters can help me pick my next topic!
